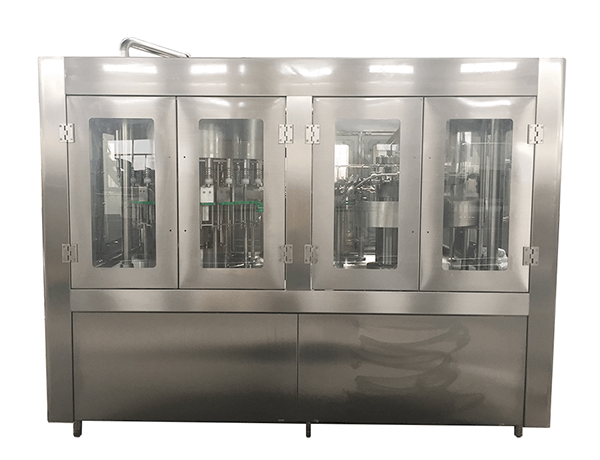

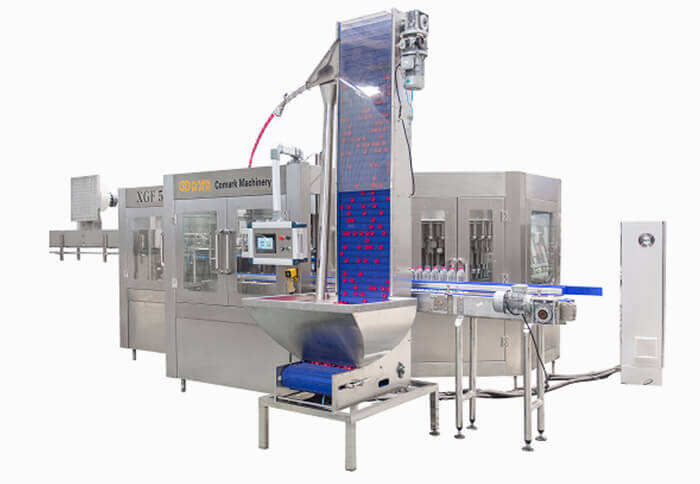

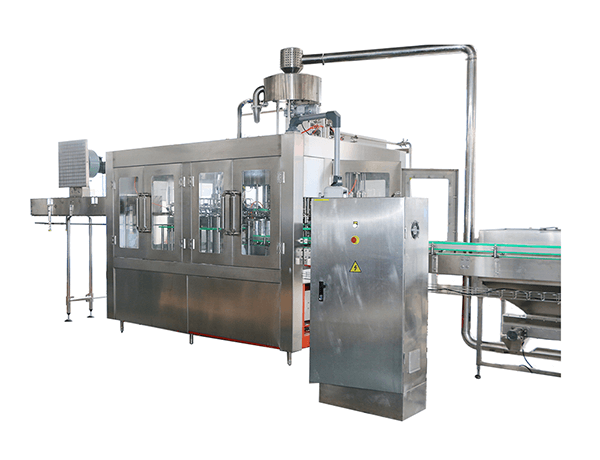

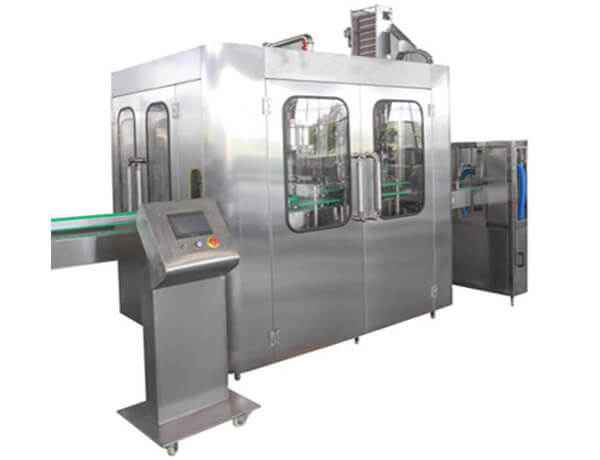

Zhangjiagang Comark Machinery Co., Ltd have 15+ years. For the water filling machine, we have water filling machine for pure water, mineral water, spring water and other bottled water, etc. The water filling machine adopts gravity filling principle. It adopts the technology of air conveyor direct connect with bottle infeed star wheel to instead of screw and conveyor. It is easier and more simple to change by bottle size, adopting neck handling technology to convey bottles from 200ml to 2L. If the neck is the same it can share one machine.

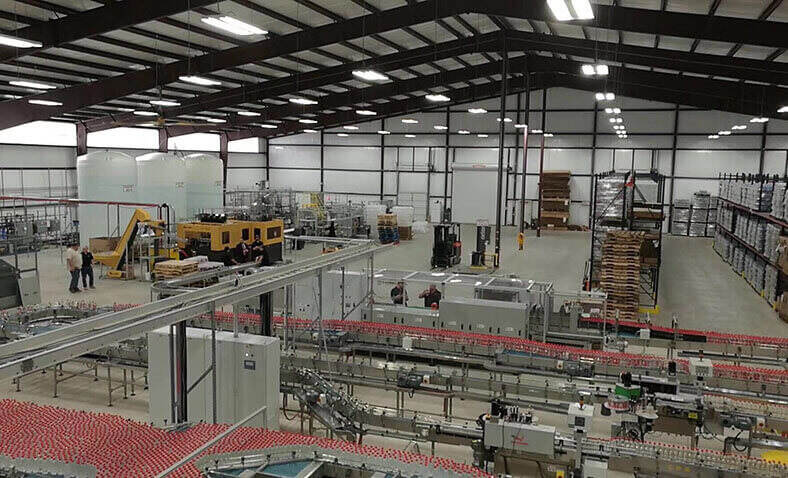

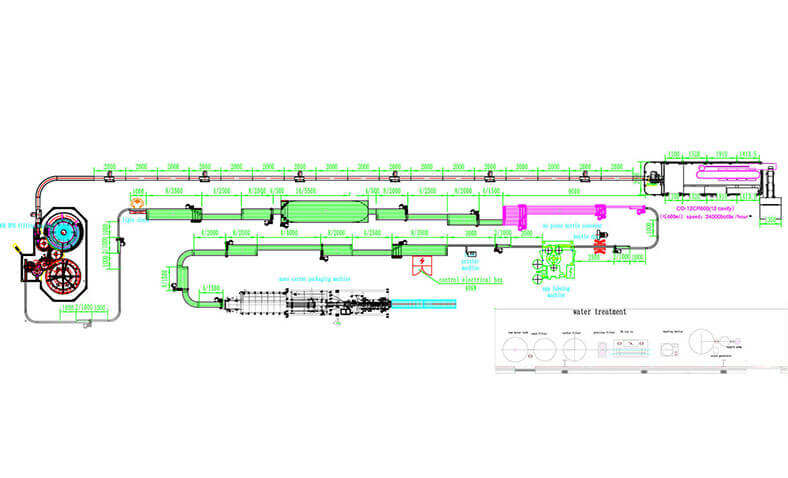

We can design the whole solution for water project
Experience of this filling machine since 2005
Long guarantee and long-time service
All main parts material are stainless 304 and 316
Main motor is ABB and SEW
Main electrical parts are supported by Siemens, Mitsubishi, Schneider
Our capping part adopts France “ZALKIN " technology
All parts of our factory adopt CNC for processing so precision is improved g
| Suitable Bottle Shape | Circular or Square | Machine Operator | 1 |
| Bottle Diameter (mm) | Φ50-Φ95 | Cap Elevator | Anti-gravity Belt Lifter |
| Bottle Height (mm) | 150-310 | Cabinet | Independent Cabinet |
| Bottle Volume | 0.2-2L | Electricals | Schneider |
| Washing | Aseptic Water | Touch Screen / PLC / Inverter | Mitsubishi or Siemens |
| Auxiliary Equipment | Water Treatment System / Bottle Blowing System / Labeling Machine / Date Printer / Packing Machine / Conveyor System | ||

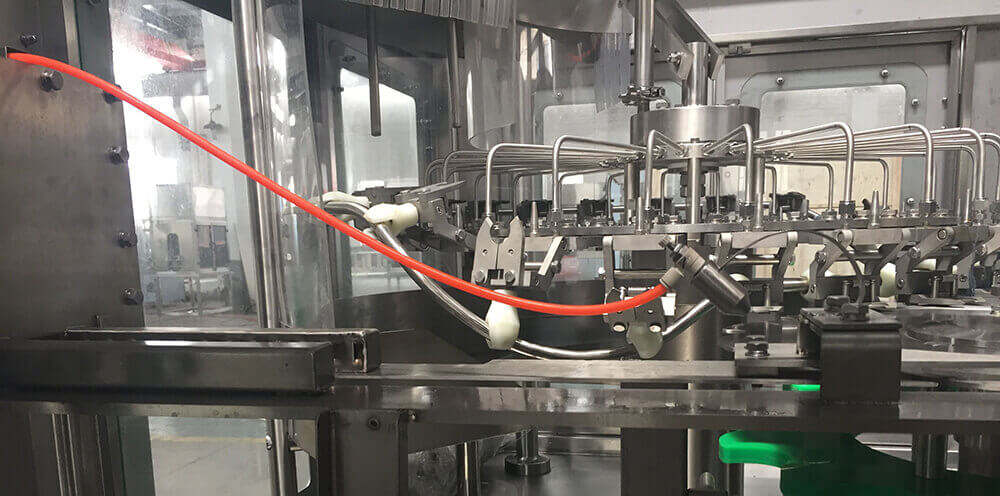

1. The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
2. The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling, and there are regulatory recycle slot and recycle pipes under the nozzles.
3. Rinsing time can be guaranteed for 4 seconds.
4. By adjusting the height of the rotary parts to adapt for different bottle height.
5. The supplying of rinsing water is controlled by solenoid valve.

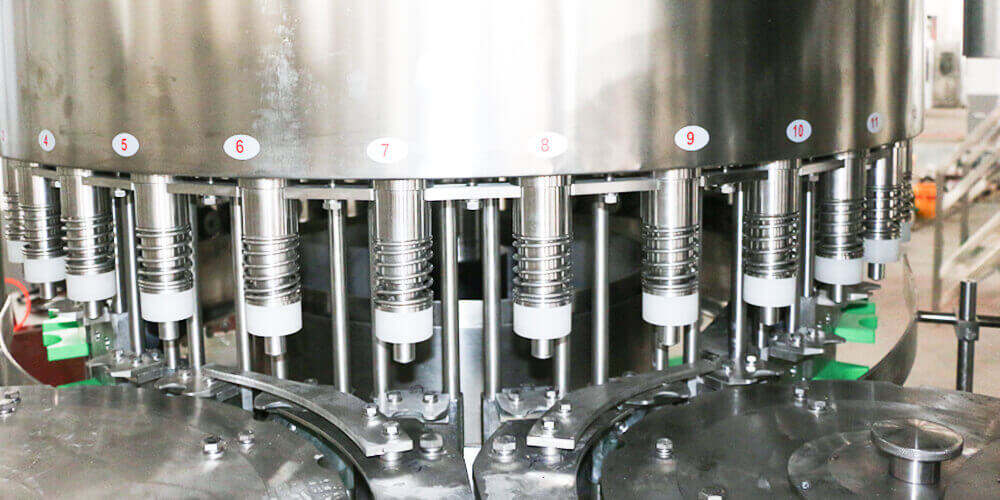

1. Adopted Germany igus anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.
3. Sliding bearing is adopted Germany igus anti-corrosion non-maintaining bearing, that can reduce the pollution of filling to the environment. Rolling bearing made of stainless steel, the sealing ring is made of EPDM material, plastics is made of UMPE.
4. The motivation of the filler is derived from the driven system in the framework and passed by gear.

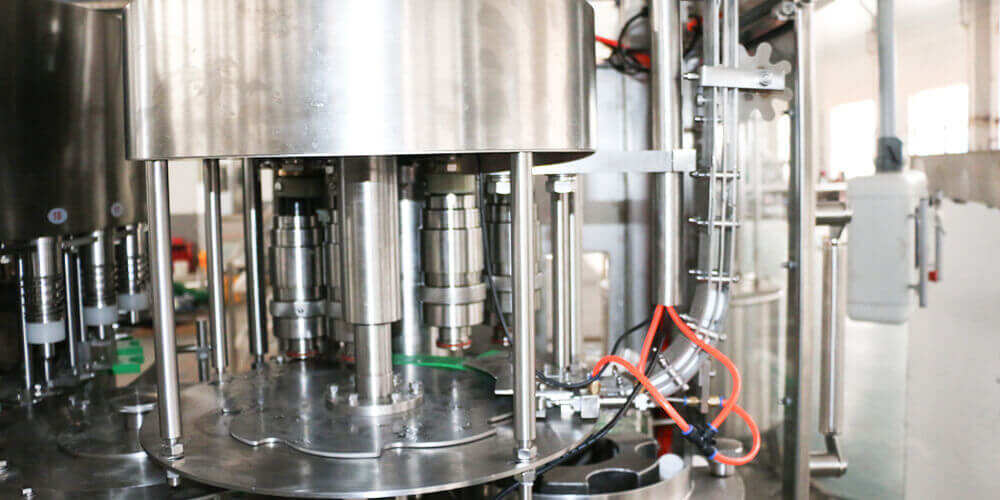

1. Introduce most advanced cap sealing technology called France “ZALKIN ", this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
2. There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.
3. By adjusting the height of the rotary parts to adapt for different bottle height.
4. The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.
5. The main parts of the screwing capper are processed by the digital-control processing center.

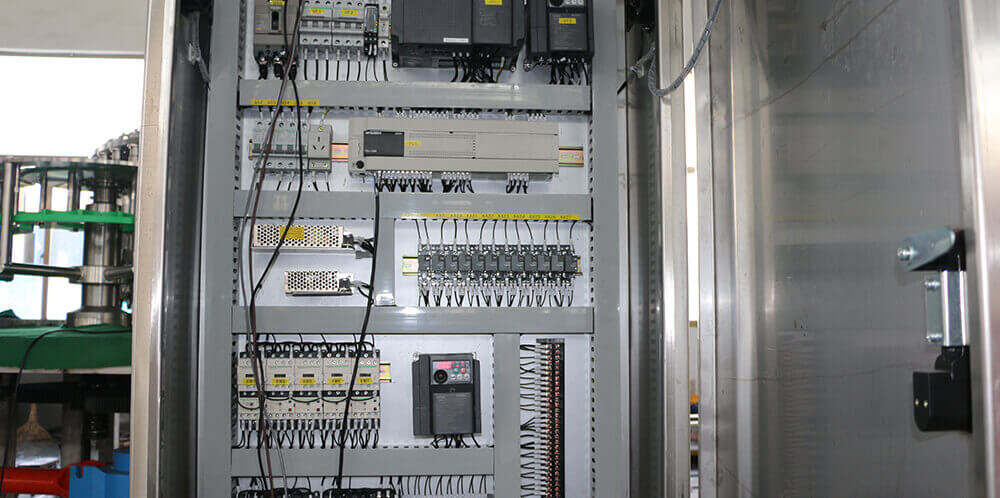

| > Rinsing Pump | CNP-CHINA | > Sliding bearing | Igus-Germany |
| > Back flow pump | CNP-CHINA | > Cap unscrambler motor | FEITUO |
| > Main motor+ reducer | ABB-Germany | > Conveyor motor | FEITUO |
| > Inverter | Siemens-Germany | > Solenoid valve | Japan SMC |
| > PLC | Siemens-Germany | > Air cylinder | Japan SMC |
| > Touch screen | Siemens-Germany | > Pressure regulation valve | Japan SMC |
| > Contactor | Schneider-France | > Intermediate relay | Schneider -France |
| > Sensor | BANNER-Germany | > Transformer | China |
| > Pneumatic components | FESTO-Germany | > Pneumatic | Japan -SMC |
| > a . c . contactor | Schneider |
