5000 BPH Glass Bottle Soda Filling Machine

5000 BPH Glass Bottle Soda Filling Machine

This machine has washer,filler,capper three functions in one body, it is automatic in total process and suitable for PET bottled water without gas.The total machine uses advanced photoelectric detection technology to detect each parts operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.

Parameter

The machine for glass bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to room filling processing demands of non-carbonated juice, tea, vitamin drinks and functional drinks to be one of the advanced room filling production line.

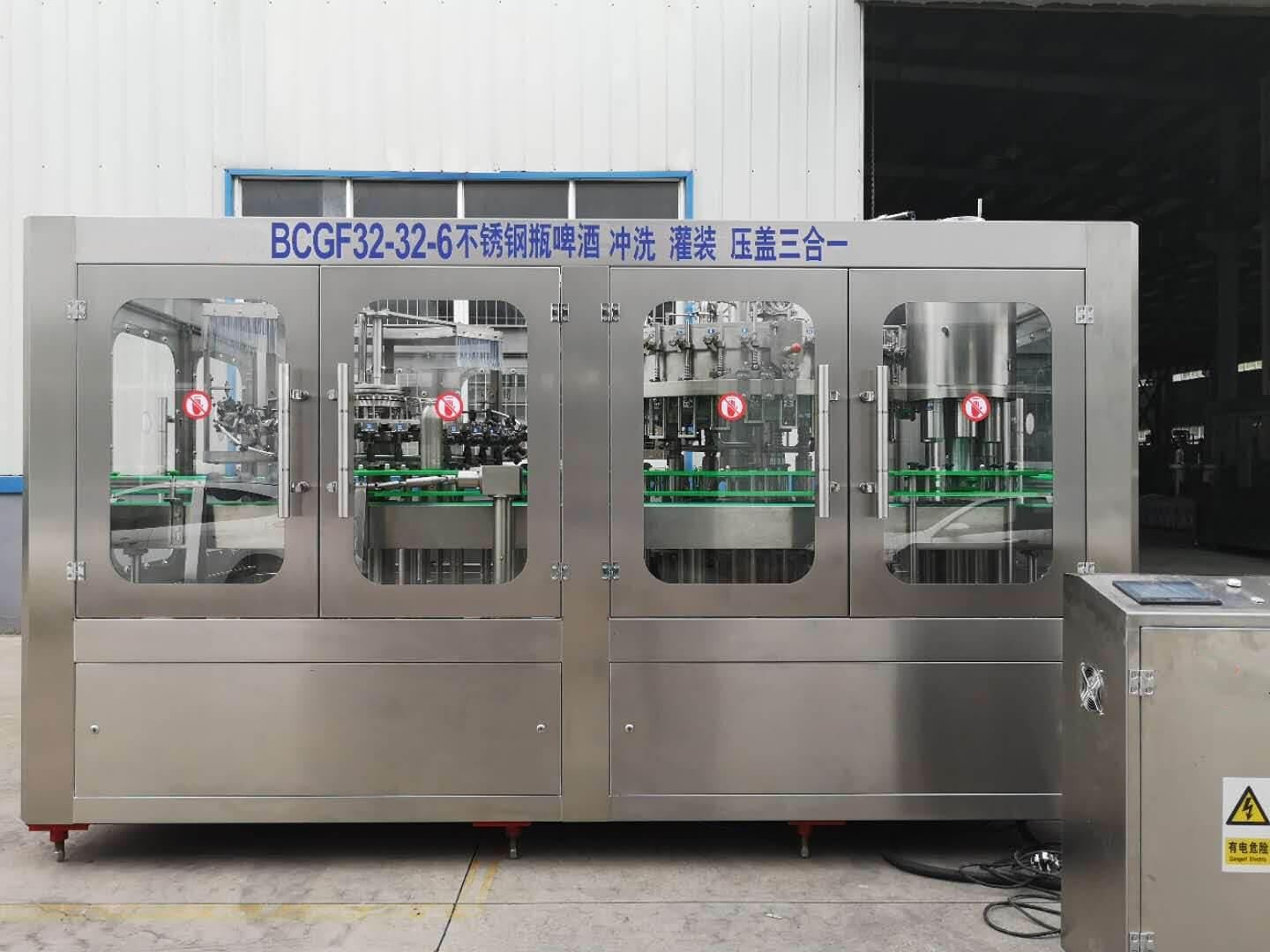

Glass Bottle Soda Filling Machine

Comark machine's latest glass filler, RGCF Series, is the most technologically advanced level probe filler for glass bottles, which combines the best hygienic conditions with a greater flexibility, sustainability and performance level. This results in outstanding product quality and the lowest TCO.


-Technical Parameters-

Model(BCGF)	14/12/5	18/18/6	24/24/6	32/32/8	40/40/12	50/50/12	60/60/15
Washing heads	14	18	24	32	40	50	60
Filling heads	12	18	24	32	40	50	60
Cappping heads	5	6	6	8	12	12	15
Capacity(BPH)	2000	3500	5000	8000	12000	16000	20000
Power(kw)	2.2	3.5	4.5	6	7.5	9.5	11.2
Dimension(mm)	240016002500	260019202550	310023002800	380025002900	4600*280082900	545033002900	650045002900
Weight(kg)	2500	3500	4500	5600	8500	9800	12800


	1-Washing Parts - Into bottle way is air conveyor direct connection with bottle dial. - All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean. - 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing. - 304/316 stainless steel washing pump make the machine more durable.
2-Filling Parts - 304/316 Stainless steel high precision filling nozzle - Filling volume adjustable in fine rank, same liquid level after filling - All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean - 304/316 stainless steel filling pump - Efficient spray nozzle rinse thoroughly and save water for flushing
	3-Capping Parts - Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping - All 304/316 stainless steel construction - No bottle no capping - Automatic stop when lack of bottle - Capping effect is stable and reliable, Defective rate ≤0.2%
4-Title goes here - Energy saving. High efficient. Adapt to customer factory layout - Special lubrication system, keep products clean, health, safety - Extended service life - Electric eyes design keep whole line running safety and quickly - Overload protection mechanism to effectively ensure the safety of the machine

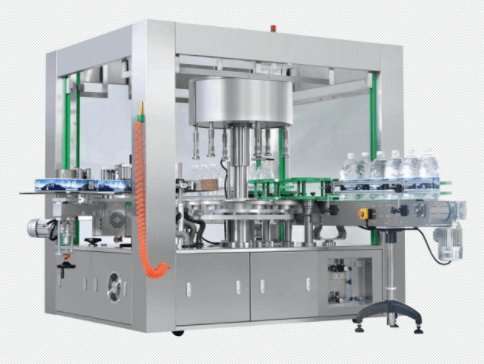

Sticker Labeling machine

This Labeling machine suit for different size and different metieral round shape products for full wrap around on body and neck of the products, such as bottle, jars ,cans in food, medicine, daily chemical and other light industries.It can be used to label the bottle body on one side or on both sides, or label the bottle cap. It can also carry out automatic positioning labeling. It is suitable for a wide range of industries.

Automatic PE film packaging machine

(1)350/500/550/600MLlarge package: 4*6, 4*5 Small package: 3*4, 3*5 (2)1L/1.5L/2L/2.5L large package:3*3,3*4 Small Package:2*2,2*3beverage machinery High efficiency and stability, simple operation. PLC control, quality assurance.
