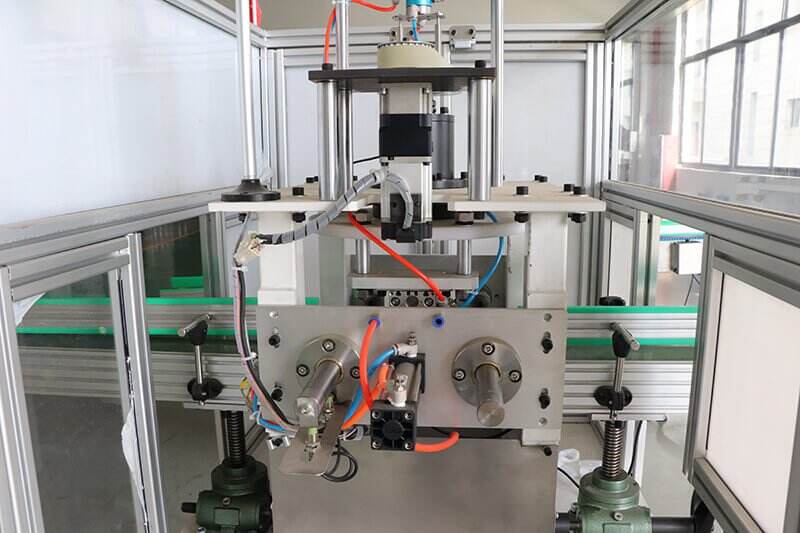

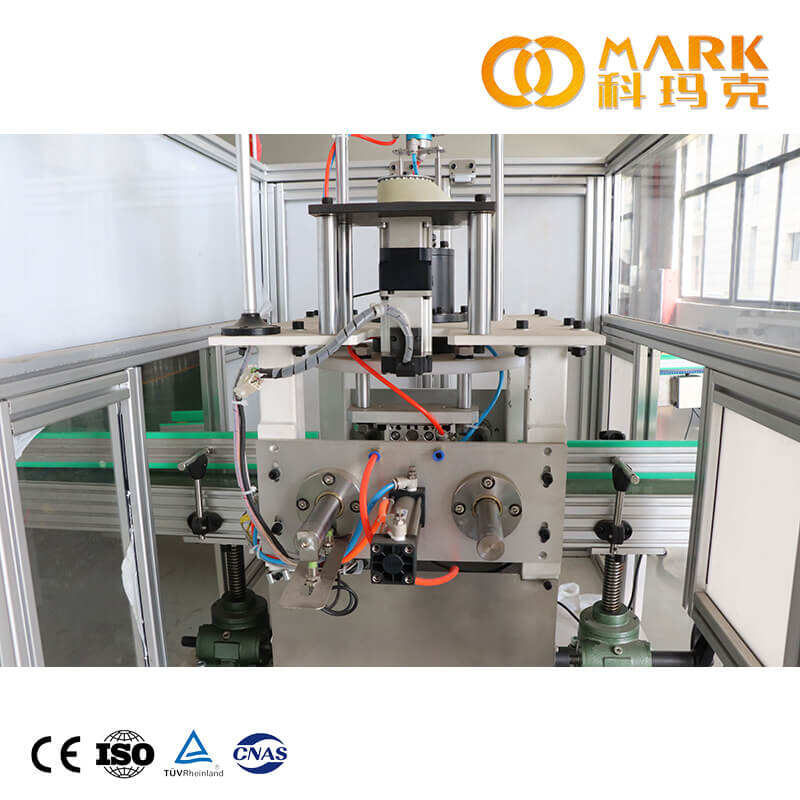

Automatic High Speed PE PVC PP PET PC Plastic Bottles Cutting Cutter Machine

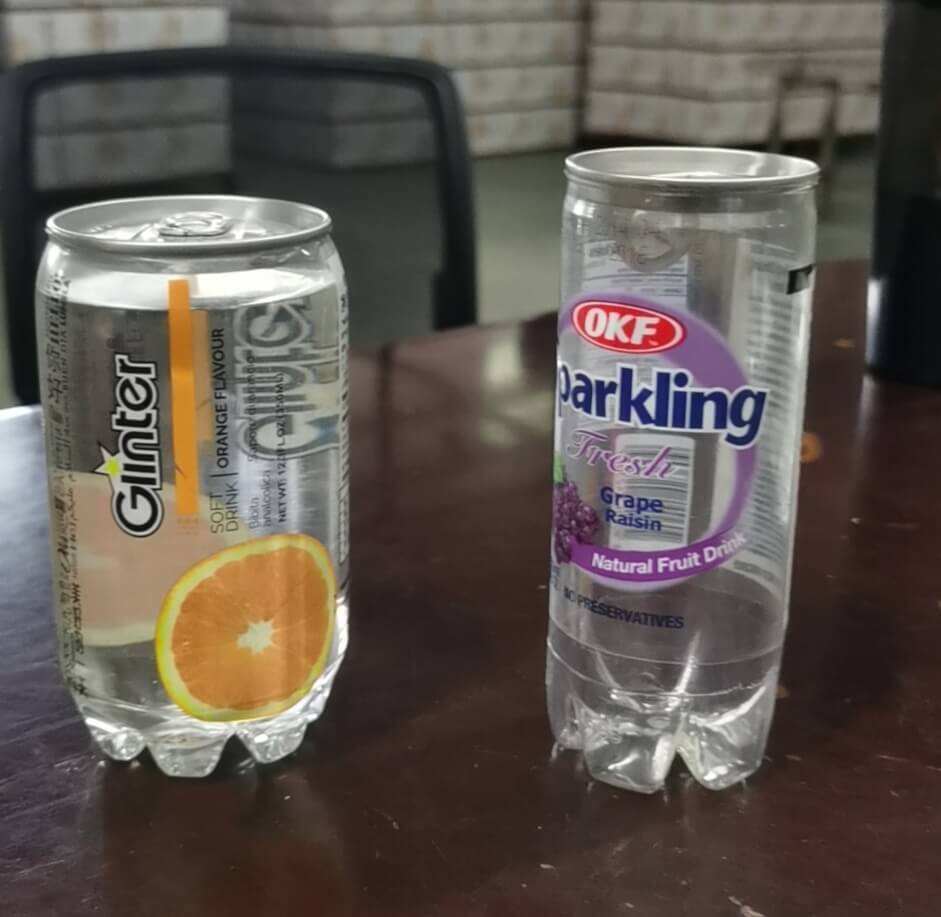

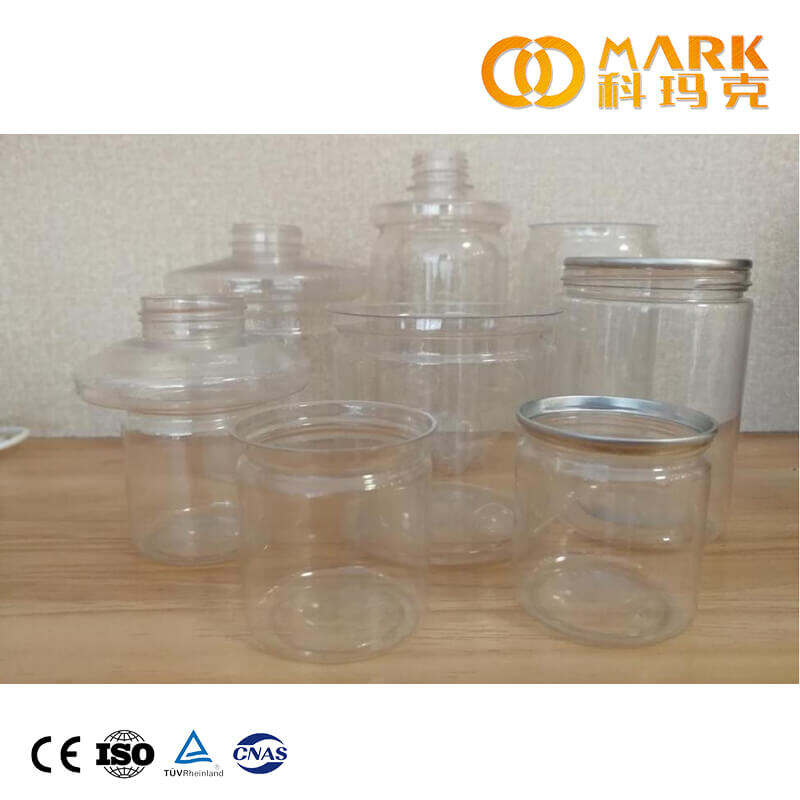

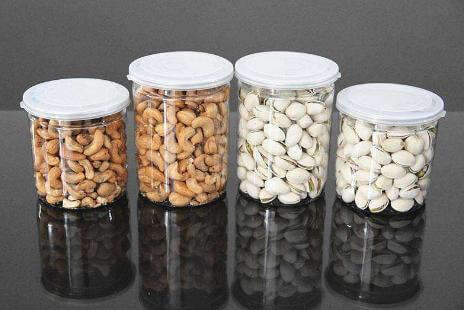

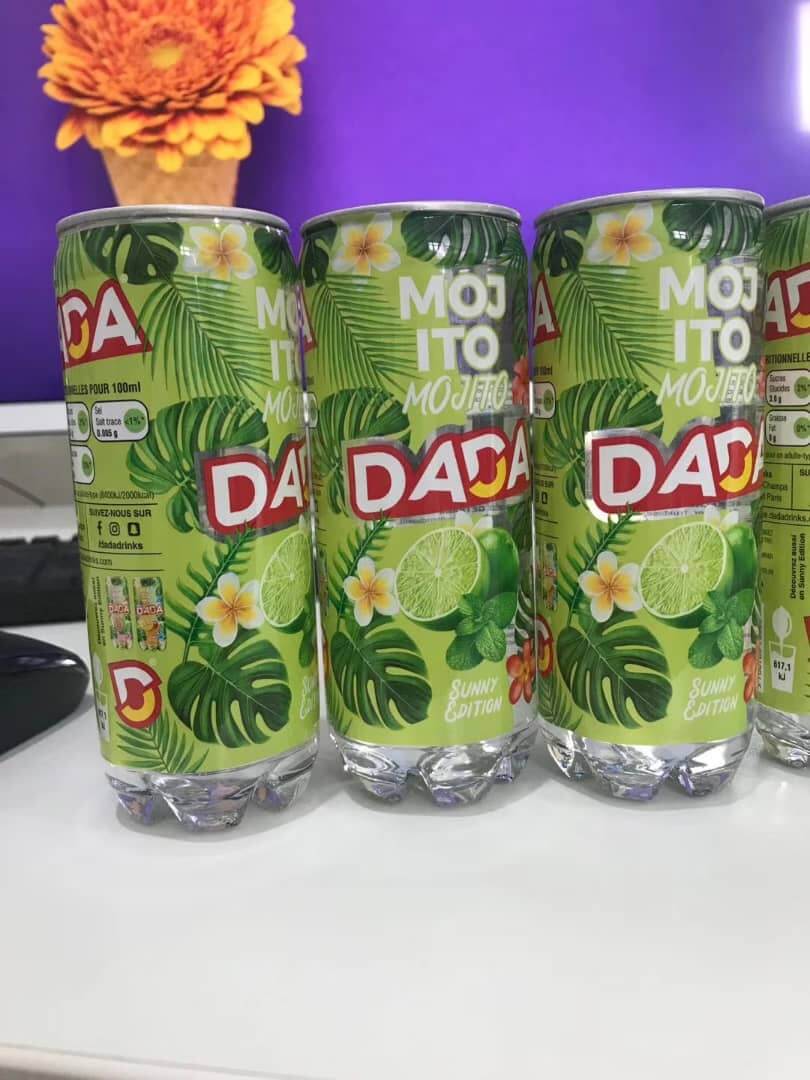

Automatic rotary cutting style is updating solutions for this industry. It hugely reduces the cost for factory in labor, material and qualified rate. Our cutting adopts the soft cutting style, it protects the container mouth and does not causes any flakes, it can guarantee the smooth ending and saves the material for you. This cutting machine can be used for plastic cans, wines cups, pharmaceutical and daily used products. The suitable cutting material can be PE, PVC, PP, PET AND PC, it can be connected to the on-line production. In short, it will be ideal choice for your cutting solutions.
| Model |
CO-1 |
CO-2 |
CO-4 |
CO-6 |
| Cutting speed |
1200-1500 |
1200-1500 |
1200-1500 |
900-1200 |
| Cutting platform height (m) |
1.3 |
1.3 |
1.3 |
1.3 |
| Conveyor length (m) |
2 |
2 |
2 |
2 |
| Cutting bottle diameter range (mm) |
50-100 |
50-100 |
50-100 |
50-100 |
| Cutting bottle height range (mm) |
120-200 |
120-200 |
120-200 |
120-200 |
| Power (kw) |
3 |
4.5 |
4.5 |
3 |
| Low pressure air capacity (m3/min) |
0.5 |
0.5 |
0.5 |
0.5 |
| Size (mm) |
2000*1200*2000 |
4000*1200*2000 |
4000*1200*2000 |
4000*1200*2000 |
| Weight (kg) |
400 |
465 |
470 |
500 |
| Motor |
|
Reducer motor |
Servo Matsusshita |
| Inlet conveyor motor |
|
|
|
Servo Panasonic |
