1000-24000BPH Carbonated Water Beverage Soda Filling Machine
1. The machine combines 3-in-1 body, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
2. High speed and large flow filling valve assure the high filling speed and exact fluid level.
3. Spares contact with the liquid is all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
 |

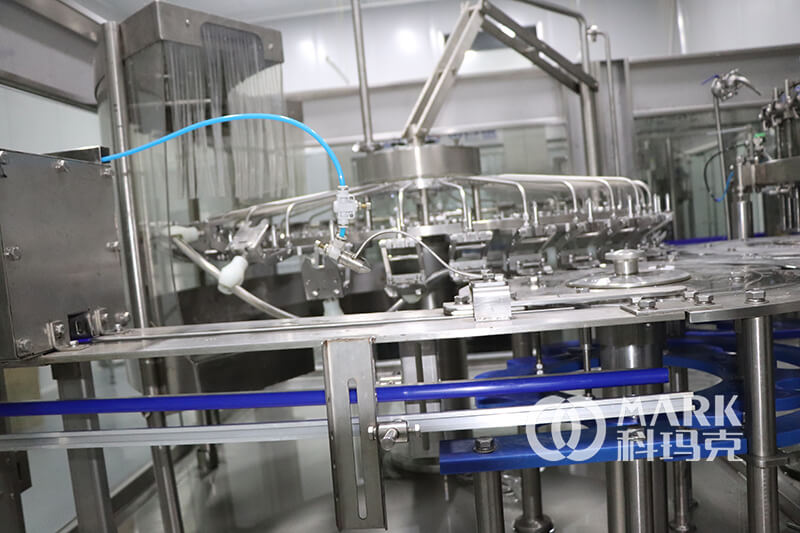

Washing Part
1. Rinsing water distributor ensure each working position has stable water supply, as well as cut the rinsing water consumption.
2. Single fluid spray nozzle is used, rinser water is spraying in setting angle, and clean all parts inside of bottle with features complete rinsing and water saving. Water rinsing time is 4 seconds and dripping water is 2 seconds.
|
|

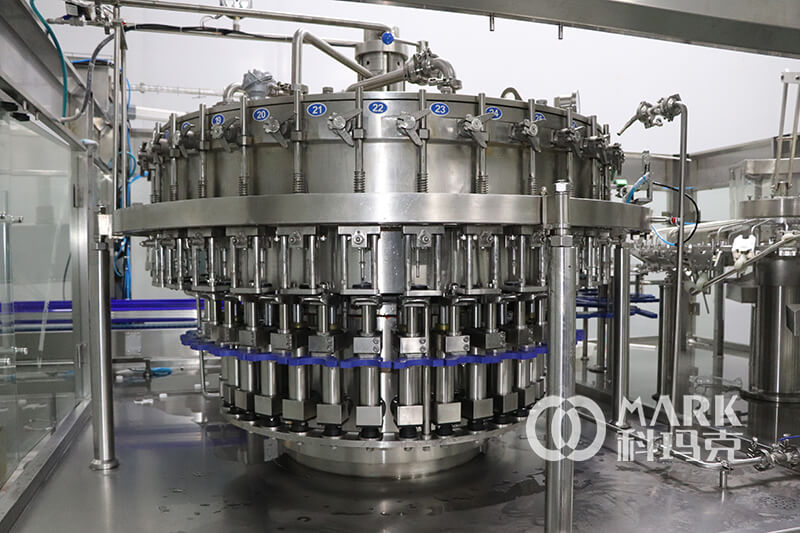

Filling Part
1. Material of filling valve and tank are made from stainless steel 304L.
2. High speed and precision filling technology, filling flow rate is 35% higher than Newamstar's second generation filling technology (reaches to 200ml/s), liquid level precision ≤±2mm;.
3. Circline liquid tank, the liquid level is controlled by floating ball.
|
 |
 |

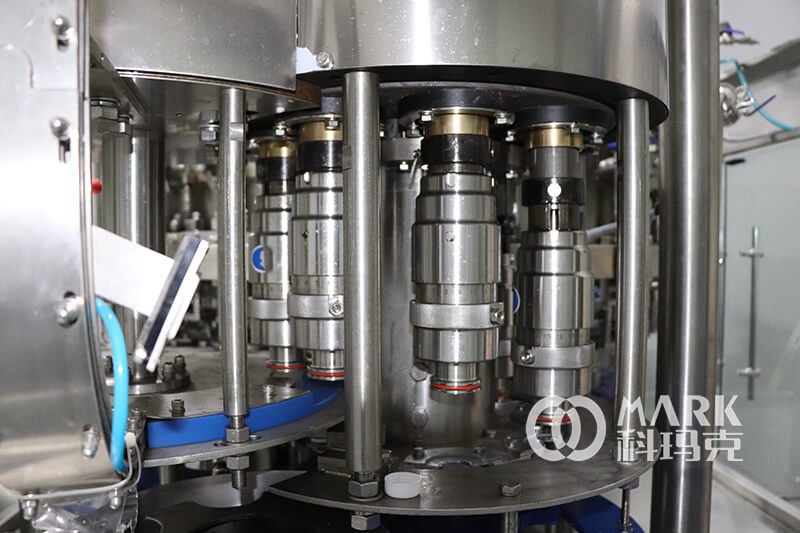

Capping Part
1. High speed and high precision capping technology and ensure capping inferior ≤0.2%.
2. Capping air tightness ≥ 99.99%
3. Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
|
| Model |
DCGF 8-8-3 |
DCGF 14-12-5 |
DCGF 18-18-6 |
DCGF 24-24-8 |
DCGF 32-32-10 |
DCGF 40-40-10 |
DCGF 50-50-12 |
DCGF 60-60-15 |
| Capacity(500ml) |
1,000BPH |
2,000BPH |
4,000BPH |
8,000BPH |
10,000BPH |
12,000BPH |
18,000BPH |
24,000BPH |
| Suitable bottle shapes |
PET bottles in all shapes |
| Bottle diamater |
50-120mm |
| Bottle height |
150-320mm |
| Aplication |
Carbonated warer / Carbonated soft drink / Sparkling water / Soda water |
