2000 -3000 BPH for 500ml Small Scale Mineral Water Plant (CGF8-8-3)
Application: still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc.
Suitable for: PET bottles
Filling system: gravity filling
Production capacity: 2,000BPH – 24,000BPH (500ml)
This automatic mineral water filling machine mainly used in the water filling operations, the three function of bottle washing, filling and capping are composed in one body of the machine, the whole process is automatic, it is conveniently turnked to adjust the machine to fill various types of bottles, the filling operation is faster and more stable due to the advanced filling valve technology, The famous brand programeed controller (PLC) is adopted to control the machine runs automatically. It is an ideal perferred equipment for beverage maker
Application
Function :washing-filling-capping system
Control : PLC
Suitable :PET bottle with screw cap
Bottle Size :200-20000 ml
Filling System:Gavity Filling
Capacity :2,000-3,000 BPH For 500ml
Application :Still water ,Pure water ,RO water ,Mineral water and ect .
Name :2000 BPH Drinking water Filling Machine
Model
CGF8-8-3
Capacity :( for 500ml )
2000-3000 BPH
Suitable bottle shapes
PET Circular or square
Bottle diamater
50-120 MM
Bottle Height
150-320 MM
Compressor air
0.3-0.7 Mpa
Washing Medium
Aspetic Water
Washing pressure
0.06-0.2mpa
Application
Still water/Pure water/Mineral water
Power
3.01 kw
Overall Dimensions
2000*1800*2250 mm
Weight
2000kgs
1)rinser
l. The rotary wheel is a fullystainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips
bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle
clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall,
and also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.
6. Transfer starwheel
7. Made of stainless steel of superior quality.

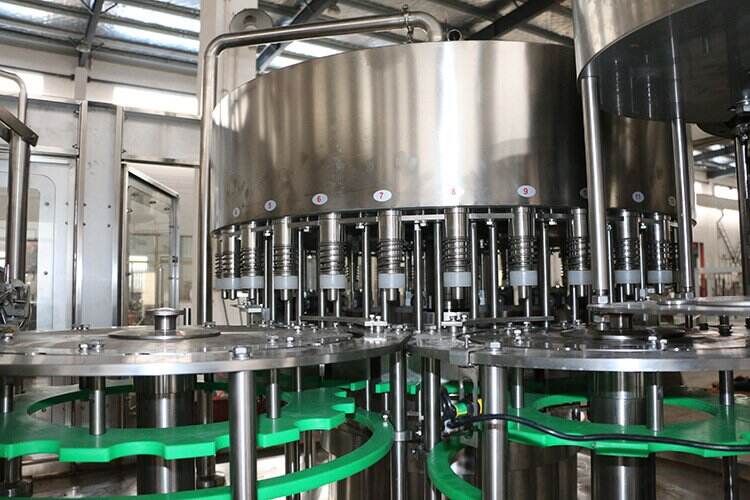

2) Filler
l. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
6. Level of cylinder is controlled with float-ball.
3) Capper
Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock.
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
