Application: carbonated drinks, CSD, cola, soda water, energy drinks, kvass, beer, etc.
Containers application: PET bottle of all volumes and shapes
Filling system: isobaric filling
Production capacity: 1,000BPH–18,000BPH (500ml)

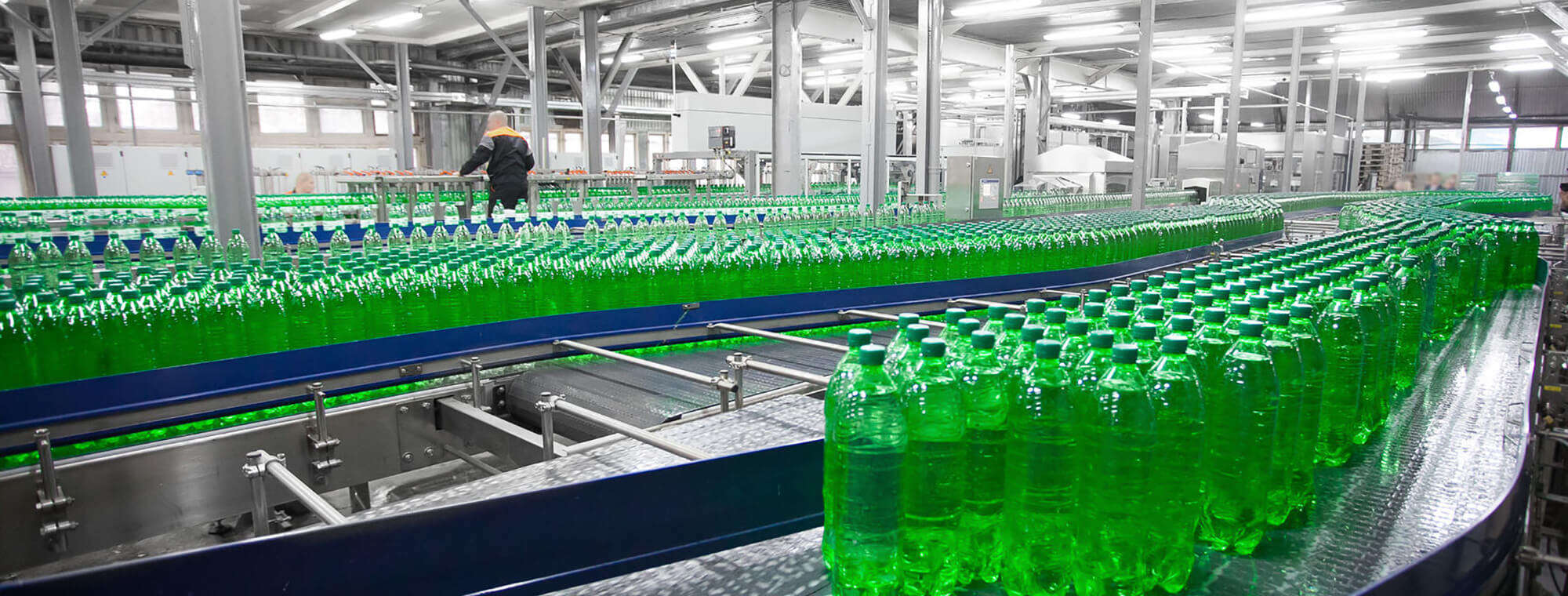

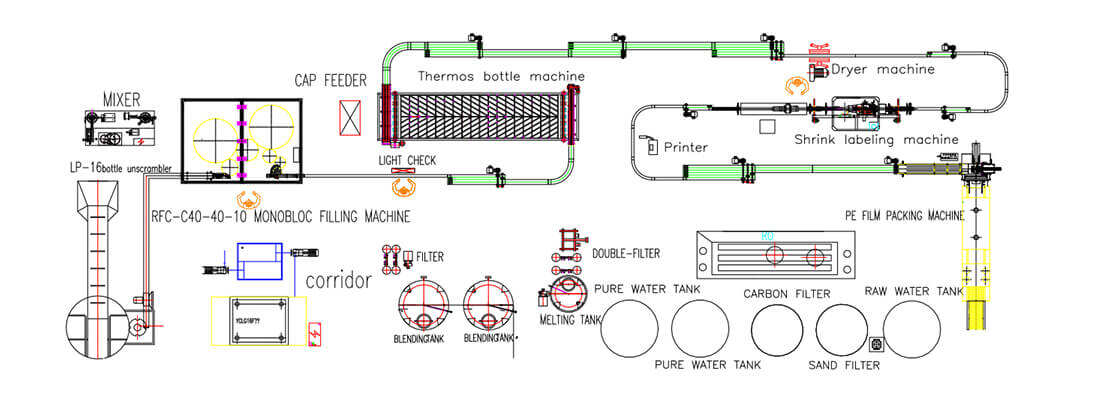

Technical features of Carbonated Soft Drink Bottling Equipment Production Line

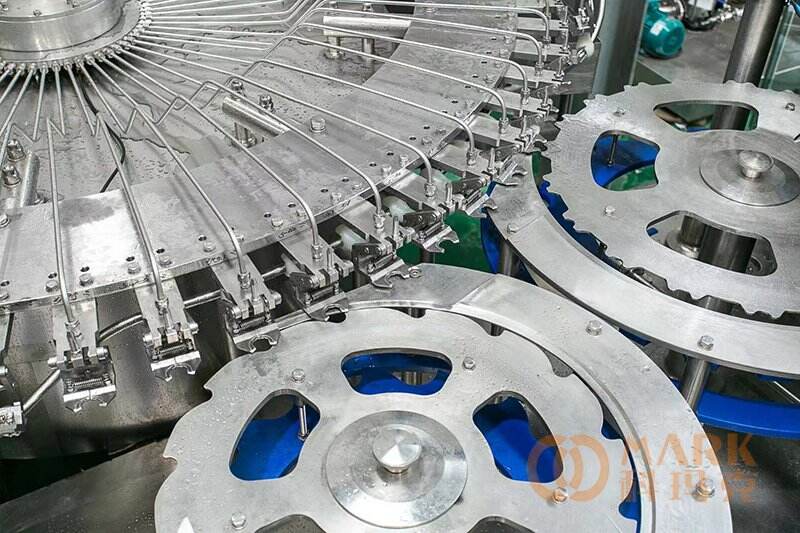

1.The air conveyor is directly connected with the bottle-in starwheel. The bottle is transferred by neck holding.
2. The high-speed line adopts bottle clamps to transfer the bottle. It makes work much easier when the bottle size is changed.
3. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
4. Specially designed stainless steel bottle clamp does not contact the thread parts of the bottleneck, avoiding the second contamination.
5. The high-speed line is of ring type pressure bearing hydraulic cylinder.
6. High speed and large flow filling valve assure the high filling speed and exact fluid level.
7. Spares contact with the liquid is all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
8. The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.
<1>Rinsing water distributor ensure each working position has stable water supply, as well as cut the rinsing water consumption.
<2>Single fluid spray nozzle is used, rinser water is spraying in setting angle, and clean all parts inside of bottle with features complete rinsing and water saving. Water rinsing time is 4 seconds and dripping water is 2 seconds;

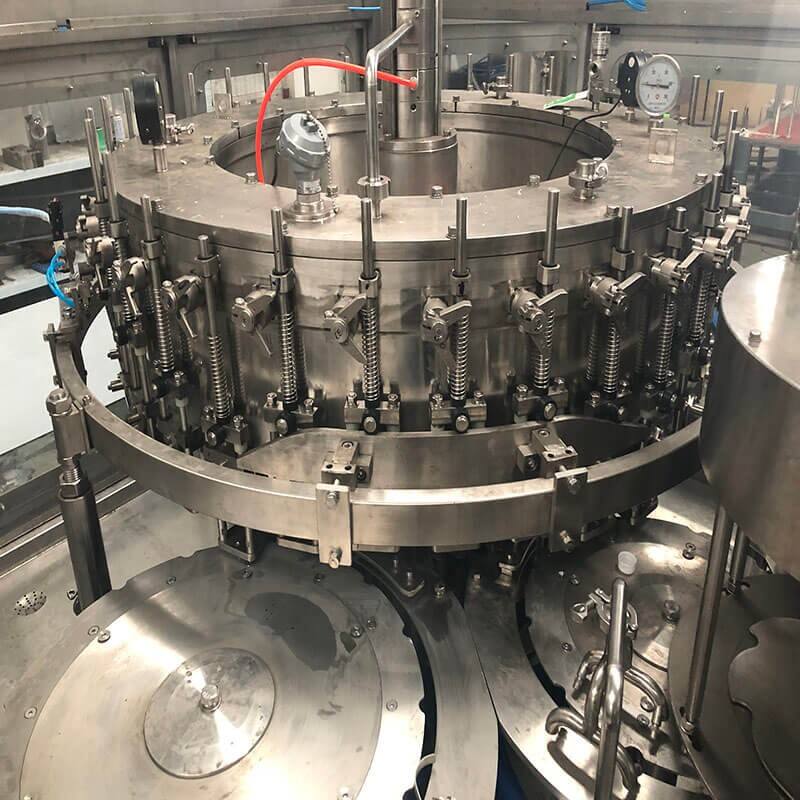

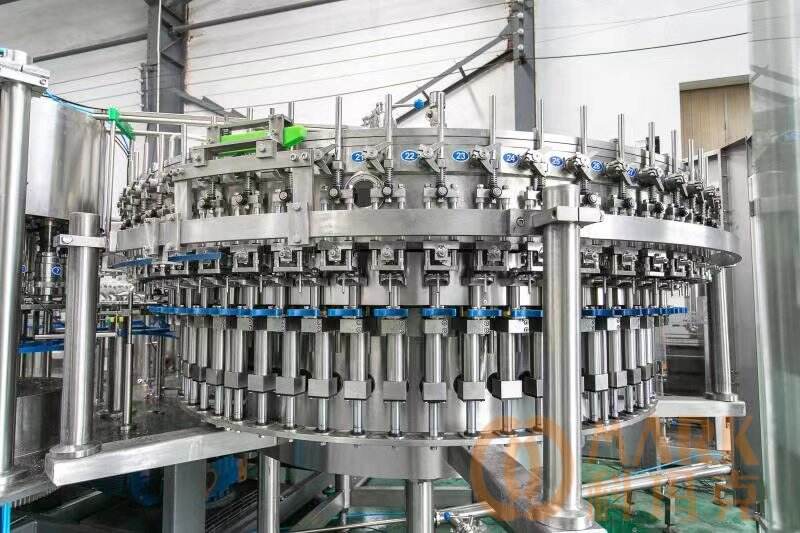

Filling Part
<1>Material of filling valve and tank are made from stainless steel 304L.
<2>High speed and precision filling technology, filling flow rate is 35% higher than Newamstar's second generation filling technology (reaches to 200ml/s), liquid level precision ≤±2mm;.
<3>Circline liquid tank, the liquid level is controlled by floating ball.

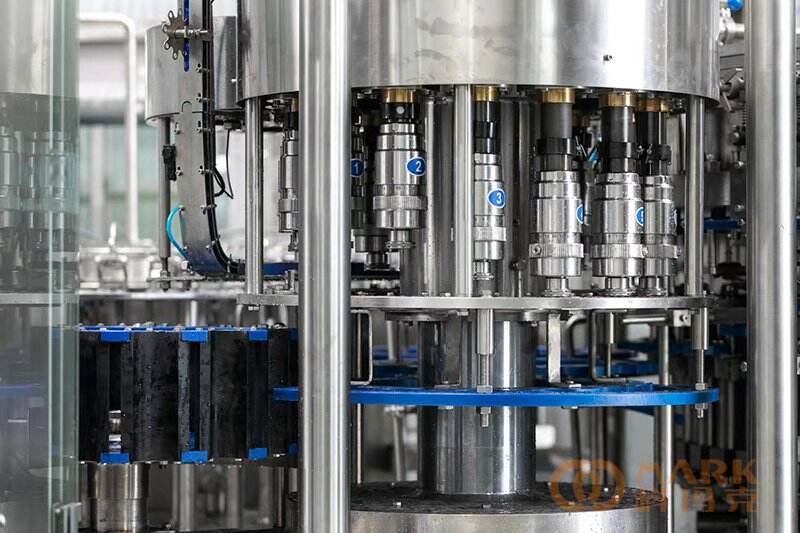

Capping Part
<1>High speed and high precision capping technology and ensure capping inferior ≤0.2%.
<2>Capping air tightness ≥ 99.99%
<3>Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
<4>The anti-rotation blade is made by chrome material, no rust and wearable.
Configuration
| Model |
DCGF14-12-5 |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-8 |
DCGF40-40-10 |
DCGF50-50-15 |
| Capacity |
2000 |
4000 |
60000 |
8000-10000 |
12000-14000 |
16000 |
|
Bottle
Sharp
|
PET Round Bottle Or Square |
| Bottle Dia |
∮50-∮115
|
| Bottle Height |
150-320 |
CAP |
Plastic Screw Cap |
| Power (kw) |
4.23 |
5.03 |
6.57 |
8.63 |
10.68 |
12 |
| Size (mm) |
2230*1630*2250 |
2360*1830*2250mm |
2900*2200*2250 |
3880*2200*2250 |
3700*3000*2350 |
4500*3300*2350 |
| Weight (kg) |
2200 |
2500 |
4200 |
6000 |
7000 |
9000 |
