Automatic orange juice hot filling machine for PET bottle. The standard type of RCGF series hot filling machine is “3-in-1”, aiming at special production condition, one disinfectant rinser can be increased to be 4-in-1 monobloc. The system gives full consideration for beverage’s characteristics (e.g. it is easy to have foaming for tea beverage and mixed juice.) and main technical requirement of hot filling.
Application: juice, milk, vitamin drinks, functional beverage with particles, flesh, pulp, fruit pieces, etc.
Suitable for: PET bottles with all volumes and shapes
Filling system: gravity filling
Production capacity: 2,000BPH–20,000BPH (500ml)
Technical characteristics
Full filling avoids the bottle distorted after cooling and reduces dissolved oxygen at the maximum degree. Product storage hopper and feed system adopt reasonable product feed design (constant flow, constant pressure, no foaming).
Product hopper with reasonable structure (exhaust, fully close, the temperature can be detected)
The medium and high-speed line adopts a product distributor instead of a large liquid carousel, which can be cleaned completely by pressure cleaning with CIP.
Sanitary filling valve system umbrella-flow type structure, high speed.
Perfect hot filling temperature control system.
Product recycling tank system with automatic product feed startup. perfect CIP system.
Model
RCGF14-12-5
RCGF18-18-6
RCGF24-24-8
RCGF32-32-8
RCGF40-40-10
RCGF50-50-15
Capacity
3000-4000
4000-6000
8000-10000
12000-14000
16000-18000
20000-24000
Bottle
Sharp
PET Round Bottle Or Square
Bottle Dia
∮50-∮115
Bottle Height
150-320
CAP
Plastic Screw Cap
Power (kw)
4.23
5.03
6.57
8.63
10.68
12
Size (mm)
2230*1630*2250
2360*1830*2250mm
2900*2200*2250
3880*2200*2250
3700*3000*2350
4500*3300*2350
Weight (kg)
2200
2500
4200
6000
7000
9000
Beverage pre-treatment system:
<1> The beverage processing system applies to beverage processing for hot filling line and CSD filling line. <2> product's scope hot water system, sugar dissolving system ( simple syrup system ), concentrate system, blending system (final syrup system), CIP system, extraction system, kind of storage tank / valves / pipe / fittings, UHT system (plate / tubular type), and carbo-cooler / mixer (manual / automatic).

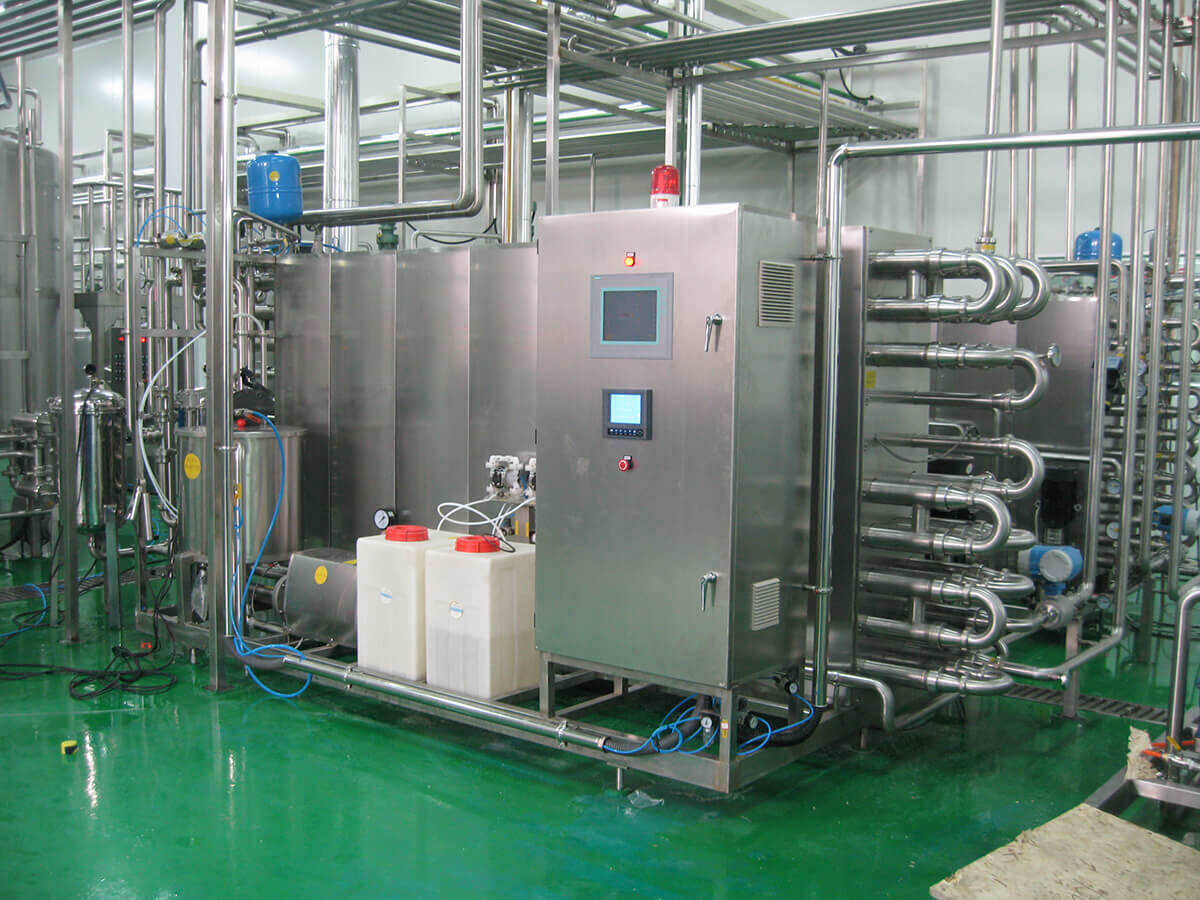

Tube UHT Sterilizer.
The tube(pipe) sterilize machine can take hot process on the liquid foods and beverage.
